Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                High Temperature Environments Wedge Gate Valve, Normal Temperature Wedge Gate Valve, Sealing Performance Wedge Gate Valve


Aplicación::	En general	Certificado::	ISO9001, ISO14001
Medium Type::	Agua, vapor y aceite, etc.	Función::	Dren condensado
Conexión::	Conexión de tornillo	Montaje del tipo::	Soporte directo
Estándar o no estándar::	Estándar	Flow way::	Bidireccional
Actuación::	Manual, eléctrico, neumático, automático	Rendimiento de sellado::	El sellamiento
Temperatura de trabajo::	Temperatura normal y temperatura alta	Aplicación de la presión::	Presión normal
Garantía de calidad::	18 meses

Aplicación::	En general
Certificado::	ISO9001, ISO14001
Medium Type::	Agua, vapor y aceite, etc.
Función::	Dren condensado
Conexión::	Conexión de tornillo
Montaje del tipo::	Soporte directo
Estándar o no estándar::	Estándar
Flow way::	Bidireccional
Actuación::	Manual, eléctrico, neumático, automático
Rendimiento de sellado::	El sellamiento
Temperatura de trabajo::	Temperatura normal y temperatura alta
Aplicación de la presión::	Presión normal
Garantía de calidad::	18 meses

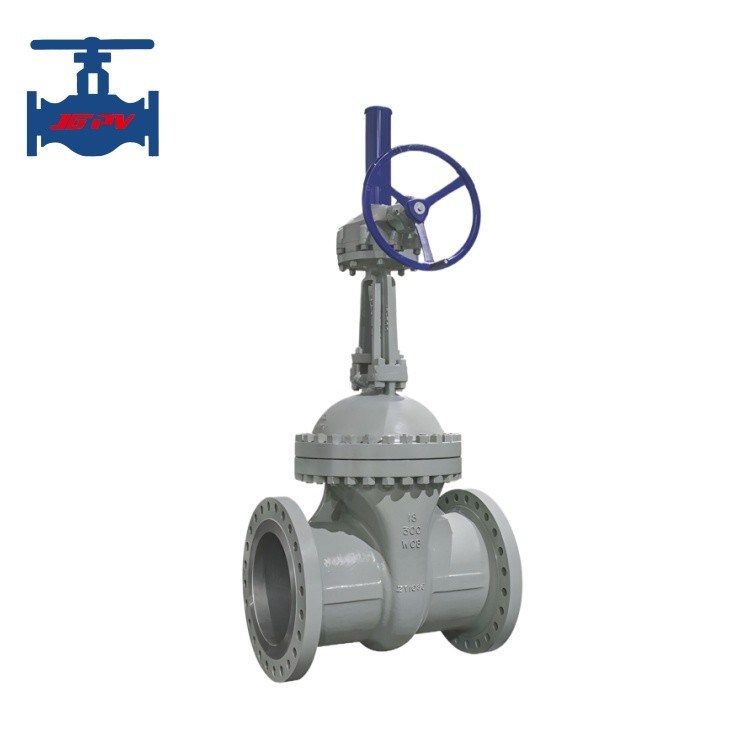

Sealing Performance Bevel Gear Wedge Gate Valve for Normal and High Temperature Environments

Bevel Gear Wedge Gate Valve

Product Specifications

Application:	General
Certification:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Function:	Condensate drain
Connection:	Screw connection
Mounting Type:	Direct Mount
Standard:	Standard
Flow Way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Overview

Gate valve refers to a valve in which the closing element (gate) moves vertically along the centerline of the passage. Gate valves are mainly used for cutting off in pipelines. Gate valve is a widely used type of valve. Gate valves can only be used for fully open and fully closed blocking in pipelines, and cannot be used for adjustment or throttling.

Technical Parameters

Nominal Diameter DN (mm)	15~200
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Body: WCB/CF8/CF8M Valve ball: Stainless steel/Carbon steel Seat: PTFE Packing: Soft graphite Shaft: 2Cr13 Handle: Ductile iron
Working temperature	≤150℃
Medium suitable	Water, oil, steam

Key Features

Compact structure, reasonable design, good valve rigidity, smooth flow channel, and small flow coefficient
The sealing surface is made of stainless steel and cemented carbide, ensuring a long service life
Flexible graphite packing is adopted, featuring reliable sealing and easy, flexible operation
The driving modes include manual, pneumatic, electric, and gear transmission
The structural forms are elastic wedge single gate, rigid wedge single gate, and double gate types

Product Images
