Turbo Integrated Fully Welded Ball Valve for Standard Pressure Applications

Turbo Integrated Fully Welded Ball Valve

Key Specifications

Application:	General
Certificate:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Function:	Condensate drain
Connection:	Screw connection
Mounting Type:	Direct Mount
Standard Or Non-Standard:	Standard
Flow way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Overview

The Q361F turbo floating fully welded ball valve is available in fixed ball and floating ball configurations, with the floating ball structure being standard. Under medium pressure, the ball is pressed tightly against the outlet sealing surface to achieve effective sealing.

Technical Parameters

Nominal Diameter DN (mm)	15~500
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Body: WCB/CF8/CF8M Valve ball: Stainless steel/Carbon steel Seat: PTFE Packing: Soft graphite Shaft: 2Cr13 Handle: Ductile iron
Working temperature	≤150℃
Medium suitable	Water, oil, steam

Key Features

Fully welded valve body with carbon-reinforced Teflon gasket for long-life operation under demanding conditions
Finely ground stainless steel ball ensures years of reliable operation
Floating ball structure with inclined elastic sealing ring maintains tight sealing under variable pressure
Valve stem uses dual "O" rings for leak-proof rotation
Maintenance-free design with easy installation and low operating costs
Extendable valve stem facilitates heat preservation
Reversible operating handle for flexible installation

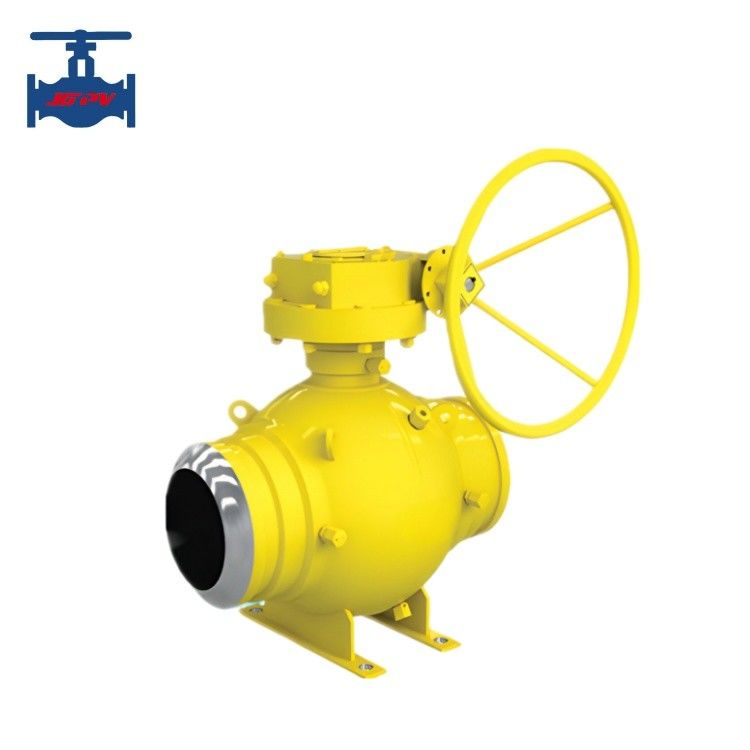

Product Images
