Swing Check Valve

Detalles del producto

Place of Origin: China

Condiciones de pago y envío

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Obtenga el mejor precio

Detalles del producto

Descripción del producto

Resaltar:

Application::	General	Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow way::	Two way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

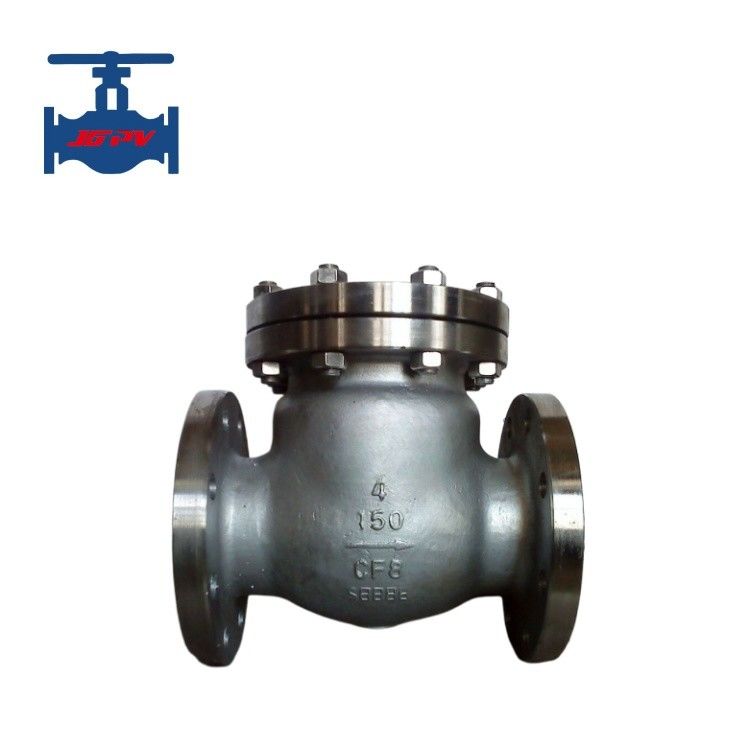

Swing Check Valve

Highlight: Swing Check Valve

Product introduction:

Check valve is also known as back-pressure valve or non-return valve, it is to prevent the pipeline medium flow back.

The opening and closing parts are opened or closed by the medium flow and force to prevent the medium from flowing back.Swing check valve is a type of check valve, the internal use of rocker arm swing type structure,This kind of valve is widely used in chemical industry, metallurgy, pharmaceutical and other fields, generally should be installed horizontally in the pipeline.

Product technical parameters:

Nominal Pressure PN(MPa)		1.0 - 4.0
Nominal Diameter DN(mm)		15～600
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
	Sealing (Air)	0.6 times of pressure nominal
	Sealing for bellows (water)	1.5 times of pressure nominal
Raw material		WCB, CF8, CF8M
Medium suitable:		Water, steam, oil mediums
Working temperature		-196℃～600℃
Connection type		Flange
Operational method		Hand-wheel, bevel gear, pneumatic and electric actuators

Product features:

1, swing check valve is suitable for the occasion of large diameter, installation position is not restricted, usually installed in horizontal pipeline, swing check valve is suitable for the occasion of large diameter, fluid resistance is generally less than the lifting check valve,

2. Swing check valve rocker arm and disc connection using spherical connection structure, so that the disc in the range of 360 degrees have a certain degree of freedom, there is appropriate trace position compensation.

3. Swing check valve with built-in rocker arm swing structure, all valve opening and closing parts are installed in the valve body, do not penetrate the valve body, in addition to the flange part with sealing gasket and sealing ring, the overall no leakage point, eliminate the possibility of valve leakage.
