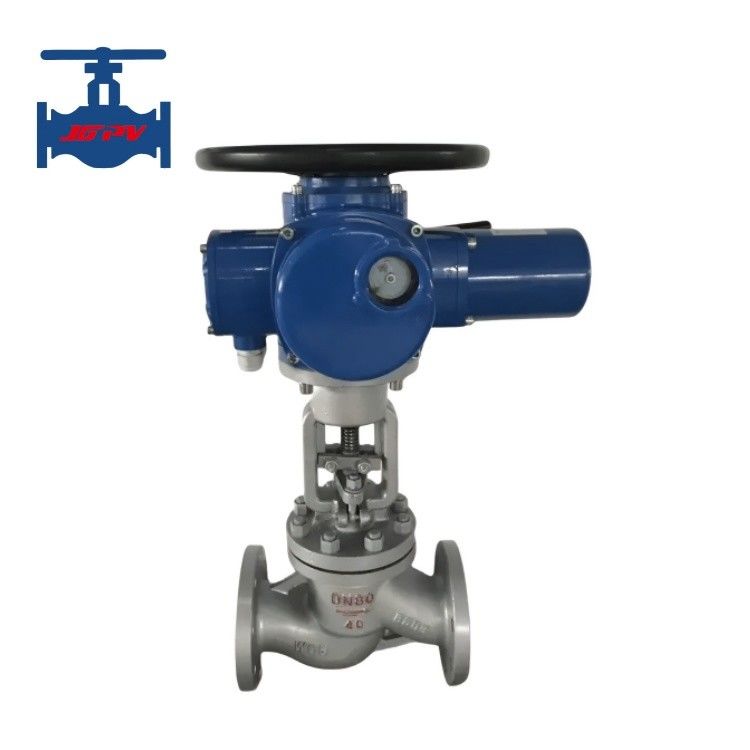

Electric Globe Valve

Detalles del producto

Place of Origin: China

Condiciones de pago y envío

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

Obtenga el mejor precio

Detalles del producto

Descripción del producto

Resaltar:

Application::	General	Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow way::	Two way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

Electric Globe Valve

Highlight: Electric Globe Valve

Product introduction:

The electric globe valve, a critical component in modern industrial process control, plays an indispensable role. It seamlessly integrates the functions of an electric actuator with those of a globe valve, achieving precise opening and closing through electric power to effectively regulate and shut off the flow of media. The electric actuator of the electric globe valve is equipped with an intelligent control system that can receive commands from automation systems such as PLCs and DCSs, enabling functions like remote operation, timed switching, and automatic adjustment. Additionally, it features safety mechanisms including fault alarms and overload protection. Upon detecting any abnormalities, it immediately activates protective measures to prevent accidents.

Product technical parameters:

Nominal Pressure PN(MPa)		1.0 - 4.0
Nominal Diameter DN(mm)		15～600
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
	Sealing (Air)	0.6 times of pressure nominal
	Sealing for bellows (water)	1.5 times of pressure nominal
Raw material		WCB, CF8, CF8M
Medium suitable:		Water, steam, oil mediums
Working temperature		-196℃～600℃
Connection type		Flange
Operational method		Hand-wheel, bevel gear, pneumatic and electric actuators

Product features:

With a simple structure, it is convenient for manufacturing and maintenance.
Features a short working stroke and quick opening/closing time.
Offers excellent sealing performance, minimal friction between sealing surfaces, and a long service life.
The friction on the sealing surfaces during opening and closing is smaller than that of gate valves, making it wear-resistant.
Usually equipped with a single sealing surface, which ensures good manufacturing process and facilitates maintenance.
The electric actuator enables convenient operation.
